End-to-End Datadog Monitoring with AI-Powered Observability
Healthcare Technology Organization
Overview
Implemented a comprehensive observability platform using Datadog with AI-powered anomaly detection, predictive alerting, and automated incident response workflows across 15+ microservices. The solution covers application performance monitoring (APM), real user monitoring (RUM), log management, and security monitoring — with ML-driven baselines that adapt to normal behavior patterns.
Client Profile
The Challenge
Fragmented visibility across 15+ microservices
Delayed incident response (MTTR >4 hours)
Limited insight into user experience issues affecting business KPIs
No AI-driven anomaly detection or predictive alerting
Solution Architecture
APM: Instrumented backend services using Datadog SDK for distributed traces across microservices.
Serverless Lambda Integration: Custom Serverless Framework plugin auto-injecting Datadog Lambda layer.
ECS Integration: Sidecar container (Datadog Agent) with API keys from AWS Secrets Manager.
EKS Integration: Datadog Operator managing DaemonSet-based agents across 20+ nodes.
RUM: Integrated Datadog RUM agent into React/Angular frontend capturing Core Web Vitals.
AI-Powered Anomaly Detection: ML-driven baselines adapting to normal behavior patterns and alerting only on genuine anomalies.
80+ Custom Monitors tracking CPU, memory, disk, latency, error rates, business metrics. 15+ Interactive Dashboards with role-specific views and AI-driven anomaly highlighting.

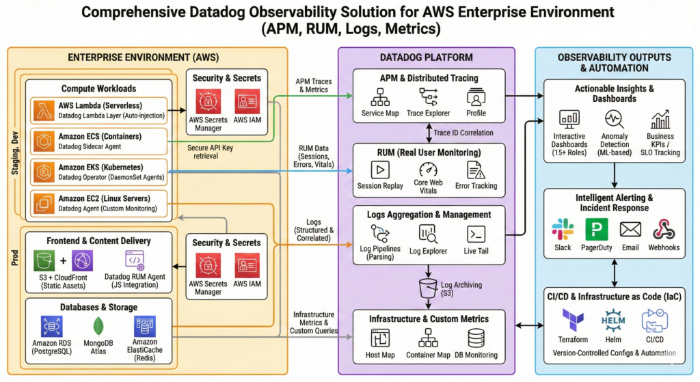

Architecture Diagram — End-to-End Datadog Monitoring & Observability
Features & Capabilities
Unified Observability Stack
Integrated APM, RUM, logs, infrastructure metrics, and custom business KPIs
AI-Powered Anomaly Detection
ML-driven baselines flagging deviations before user impact
Distributed Tracing
Full end-to-end trace visibility across 15+ microservices
Cross-Service Log Correlation
Linked application logs to APM traces (70% debugging time reduction)
Smart Alerting & Incident Management
80+ custom monitors with anomaly detection, SLO tracking
Business Impact Visibility
Dashboards tying system performance to business outcomes
Proactive Detection
Issues identified before impacting users
Automated CI/CD Deployment
All Datadog configurations version-controlled via Terraform/Helm
Technology Stack
Security & Compliance
Datadog API keys in AWS Secrets Manager, retrieved via IAM
PII scrubbing enabled in logs and RUM data (regex masking)
Configuration options implemented
SOC 2 Type II, ISO 27001, HIPAA (with BAA), NIST SP 800-53
Results & Impact
Mean Time to Detect (MTTD)
0%
93% reduction (45 min to 3 min)
Mean Time to Resolve (MTTR)
0%
75% reduction (4+ hrs to <1 hr)
Production Incidents Prevented
0+
12+ through proactive AI detection
Log Volume Processed
0
500GB+/day
Traces Processed
0
10k+/hour
RUM Sessions
0
100k+/day
